Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

Name: Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment
Brand: Shanghai Ecopro Environmental Engineering Co., Ltd.
Price: 13608 USD
Availability: InStock

Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

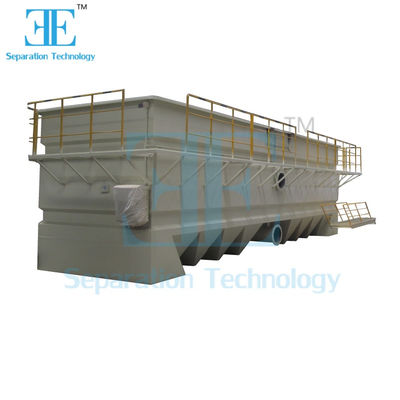

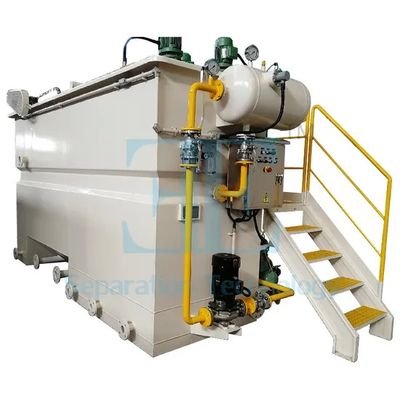

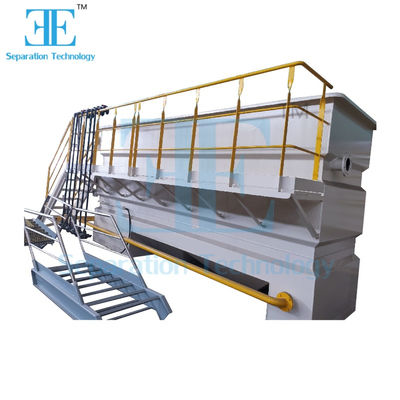

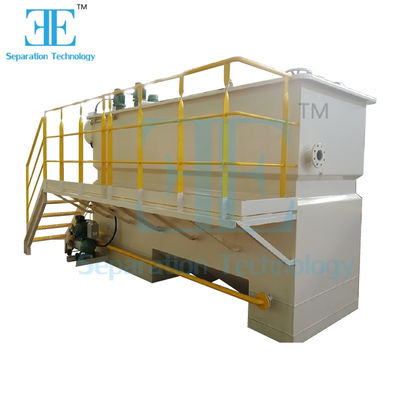

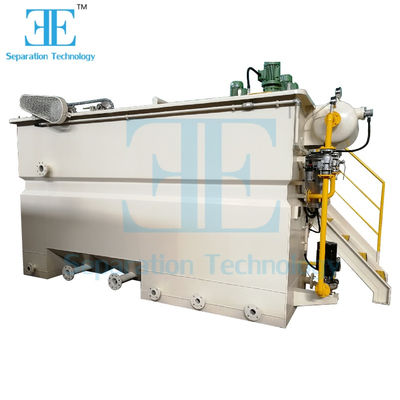

Image Grand : Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

Détails sur le produit:

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	13608

Contact

Description de produit détaillée

Modèle no.:	Daf	Capacité:	5m3/h
Puissance du compresseur:	0,55 kW	Puissance de la pompe dissoute:	3KW
Puissance de l'écrou:	0,1 kW	Puissance de l'agitateur de la coagulation:	0,55 kW
Puissance de l'agitateur de floculation:	0,55 kW	Puissance de l'agitateur pH:	0,55 kW
Dimensions:	360017001850 mm	Capacité de production:	100000/WEEK
SS Contenu:	ppm ou mg/l	Contenu à l'huile:	ppm ou mg/l
Gamme de pH:	6 ~ 9	Contenu du BOD:	ppm ou mg/l
Contenu de la DCO:	ppm ou mg/l
Mettre en évidence:	0.55kw Coagulate Agitator DAF System , 0.55kw Flocculation Agitator Dissolved Air Flotation , 0.55kw pH Agitator Wastewater Treatment System

Ecopro The Dissolved Air Flotation Device Can Operate Continuously to Effectively Remove Grease and Suspended Particles in Sewage Treatment

DAF System and Dissolved Air Flotation for Waste Water Treatment

Dissolved Air Flotation is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids.

The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air atmospheric pressure in a flotation tank basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.

DAF System Work Process

The wastewater enter RT1 (coagulation reaction tank) and RT2 (flocculation reaction tank) from the equalization tank through the lift pump, and coagulates with PAC floculates with (PAM) respectively form the flocs.

Then the wastewater and dissolved water enter the reaction zone of the DAF tank, and the microbubbles and flocs in the dissolved water are mixed and adhered to form solid particles, which the density less than water, and float up to the surface of the DAF tank.

Under the action of buoyancy, scum is scraped to the slag tank. The clean water is collected down to the collect tank through the water collecting pipe, and most of the outer water is discharged (or into the next process), and a small part of the water is recirculated to form the dissolved water.

DAF System Fabricate Process

Technical Data

DAF System Features

Micro bubbles generating
Subsurface capture
Automatic slagging controlled by liquid level
Non-clogging releasing with high efficiency

Application of DAF System

Municipal Sewage
Slaughter House
Metallurgical Industry Wastewater
Spraying Sewage
Printing & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage

More Details about DAF System

How to select right model?

Wastewater type (dairy wastewater, car washing wastewater, slaughter house wastewater, food wastewater, river water...)

SS content (ppm or mg/L)
Oil & Grease & Fat & FOG content (ppm or mg/L)
PH (6~9 is preferred. Otherwise consider PH adjust tank before DAF tank, also have to consider the material of the DAF because of Corrosive substance)
BOD (ppm or mg/L)
COD (ppm or mg/L)

Ways of Packing
