40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

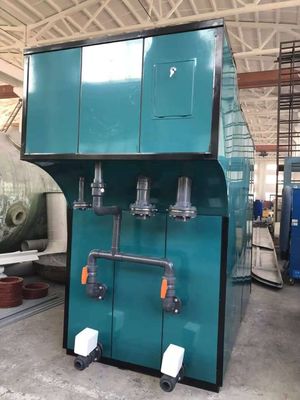

Image Grand : 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Détails sur le produit:

Lieu d'origine:	Shanghai, Chine
Nom de marque:	ECOPRO

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	$36,897

Contact

Description de produit détaillée

Productivité:	40m3 / h	Poids:	2298 kg
Type de traitement:	Filtration	Pouvoir:	3 kW, 30 kW, 20 kW
Tension:	220 V, 380 V, 110 V	Capacité:	40m3 / h
Poids de l'électrode:	11500 kilogrammes	Poids vide:	3500 kg
Opération Poids:	31000 kilogrammes	Capacité de traitement:	1m3/h
Consommation d'énergie:	3KW / H	Dimension:	1000 * 650 * 1500 mm
Poids de l'électrode:	650 kg	Poids vide:	400 kg
Opération Poids:	1500 kg
Mettre en évidence:	40m3/h electrocoagulation wastewater system , electrocoagulation system 3-30 kW , industrial wastewater treatment electrocoagulation

Electrocoagulation Wastewater Treatment Station

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically employs aluminum, iron, or other readily available metals as anode materials.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

The system operates through electrochemical reactions:

Electrochemical reaction: Fe→Fe²⁺+2e
Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e (nascent oxygen [O] provides strong oxidation)
Cathode reduction: 2H⁺+2e→2[H]→H₂ (nascent hydrogen breaks bonds and functional groups)

These oxidation and reduction functions occur continuously on the plates for effective treatment.

System Features

Wide power adaptability: Operates within 220V-480VAC range
Safe operation: Embedded isolated voltage circuit ensures electrical safety with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as excellent coagulants without requiring polymers

About Shanghai Ecopro Environmental Engineering

Established in 2017, Shanghai Ecopro Environmental Engineering Co. Ltd specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we are committed to providing high-quality equipment, services, and systematic solutions to the industry.

Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.
