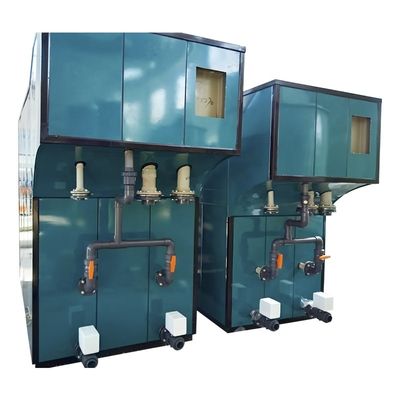

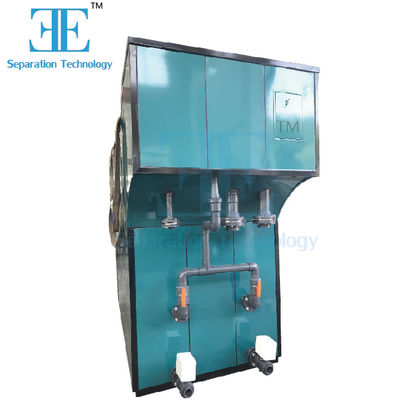

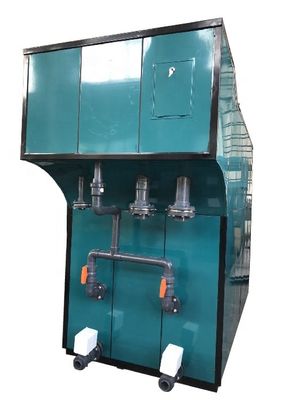

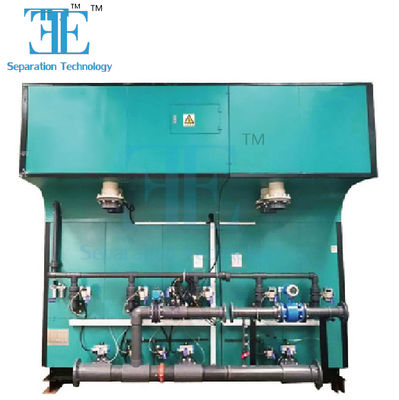

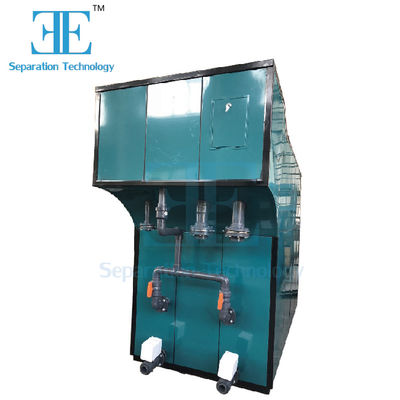

40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW

Image Grand : 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW

Détails sur le produit:

Lieu d'origine:	Shanghai, Chine
Nom de marque:	ECOPRO

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	$36,897-69,583

Contact

Description de produit détaillée

Productivité:	40m3 / h	Poids:	2298 kg
Pouvoir:	3 kW, 30 kW, 20 kW	Tension:	220 V, 380 V, 110 V
Poids de l'électrode:	11500 kilogrammes	Poids vide:	3500 kg
Opération Poids:	31000 kilogrammes	Capacité de traitement:	1m3/h
Consommation d'énergie:	3KW / H	Dimension:	10006501500 mm
Poids de l'électrode:	650 kg	Poids vide:	400 kg
Opération Poids:	1500 kg	Plage de tension:	220V-480VAC
Composants de base:	Boîte de vitesses, pompe, roulement, moteur
Mettre en évidence:	40m3/h electrocoagulation wastewater system , industrial electrocoagulation system 3-30 kW , electrocoagulation system for industrial wastewater

Electrical Coagulation System (EC) for Industrial Wastewater Treatment

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system primarily uses aluminum or iron anodes, which are cost-effective and readily available.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kW/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

The system operates through three key electrochemical processes:

Electrochemical reaction: Fe→Fe²⁺+2e⁻

Anodizing reaction: 2OH⁻→2[O]+2e⁻→O₂+2e⁻

Cathode reduction: 2H⁺+2e⁻→2[H]→H₂

These oxidation and reduction reactions continuously occur on the plates, providing effective wastewater treatment through:

Strong oxidation from nascent oxygen [O] (comparable to UV, H₂O₂, and O₃)
Powerful reduction from nascent hydrogen that breaks chemical bonds
Effective removal of COD, chromophore functional groups, and multi-chain compounds

System Features

Wide power supply adaptability: Operates within 220V-480VAC range
Safe and convenient: Embedded isolated voltage circuit ensures electrical safety with comprehensive protection against phase loss, overload, overcurrent, overvoltage, and zero voltage conditions
Automatic control: Detects ion state in water and automatically adjusts current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating the need for additional polymers

Company Profile

Shanghai Ecopro Environmental Engineering Co., Ltd., established in 2017, specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we are committed to providing high-quality equipment, services, and systematic solutions. Our product range includes:

Static and rotary drum screens
Polymer dosing systems
DAF systems
Electrochemistry systems
Screw presses and plate filter presses
Sludge dryers
Mutag Biochip technology
Sodium hypochlorite generators
Various pump systems

Product Packaging
