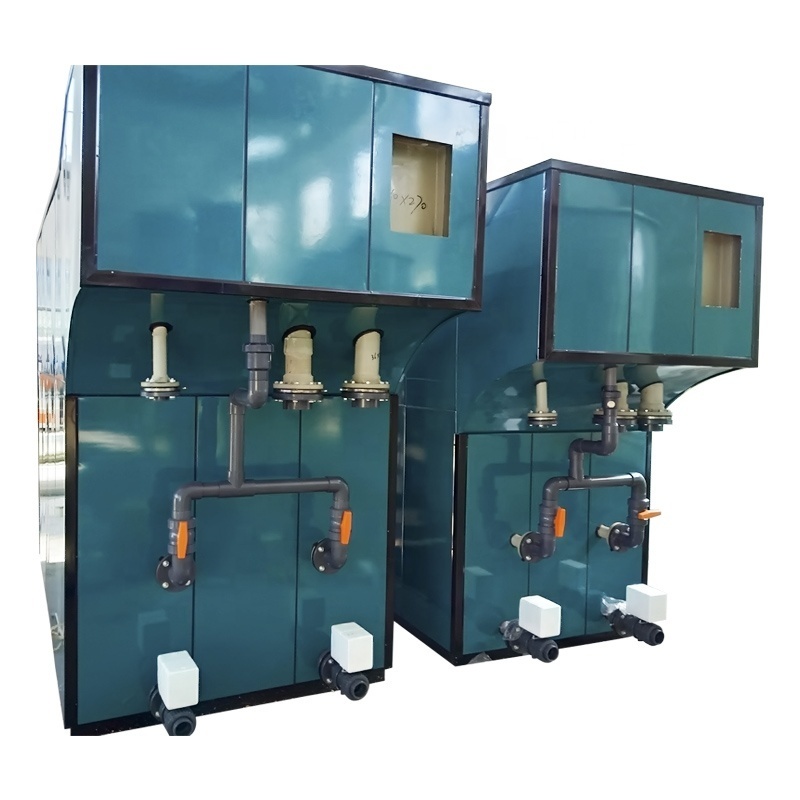

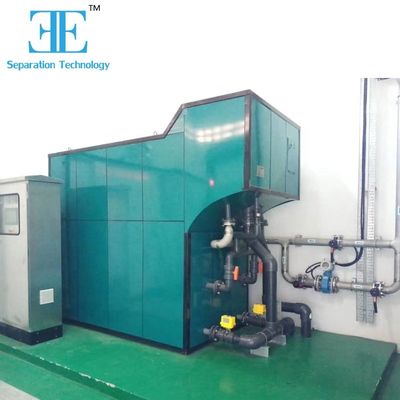

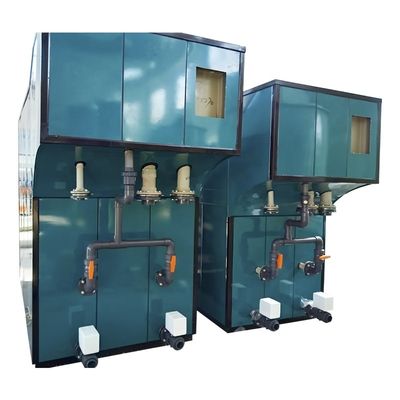

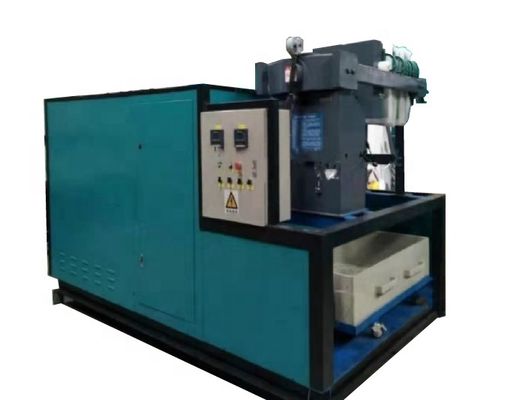

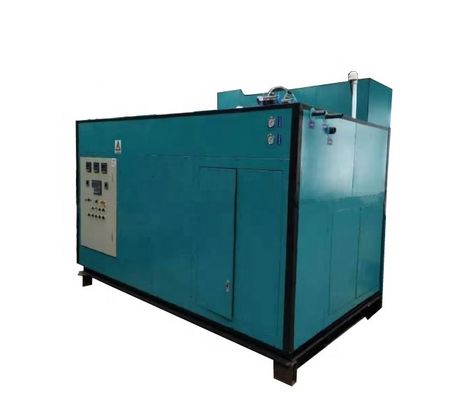

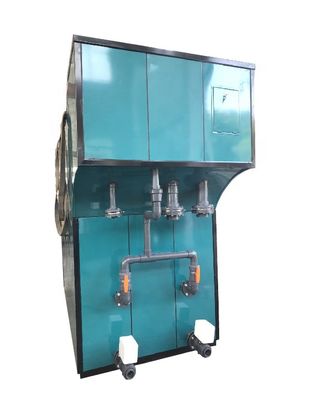

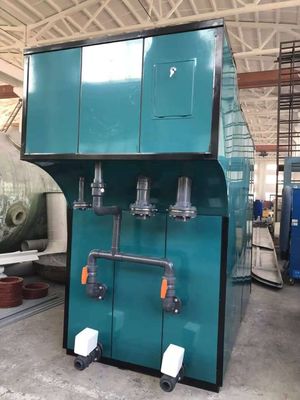

40m3/h Electrocoagulation System for Wastewater Treatment 380V

Image Grand : 40m3/h Electrocoagulation System for Wastewater Treatment 380V

Détails sur le produit:

Lieu d'origine:	Shanghai, Chine
Nom de marque:	ECOPRO

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	$38,627

Contact

Description de produit détaillée

Productivité:	40m3 / h	Poids:	2298 kg
Pouvoir:	3 kW, 30 kW, 20 kW	Tension:	220 V, 380 V, 110 V
Poids de l'électrode:	11500 kilogrammes	Poids vide:	3500 kg
Opération Poids:	31000 kilogrammes	Capacité de traitement:	1m3/h
Consommation d'énergie:	3KW / H	Dimension:	1000 * 650 * 1500 mm
Poids de l'électrode:	650 kg	Poids vide:	400 kg
Opération Poids:	1500 kg	Plage de tension:	220V-480VAC
Type de traitement:	Filtration
Mettre en évidence:	40m3/h electrocoagulation wastewater treatment system , electrocoagulation system 380V industrial wastewater , wastewater treatment electrocoagulation system with warranty

High Voltage Pulsed Electrocoagulation Equipment for Waste Water Treatment

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically employs aluminum, iron, or other readily available metals for efficient operation.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

The system operates through electrochemical reactions:

Fe → Fe²⁺ + 2e⁻

Anodizing reaction produces nascent oxygen with strong oxidation function:

2OH⁻ → 2[O] + 2e⁻ → O₂ + 2e⁻

Cathode reduction generates nascent hydrogen that breaks chemical bonds:

2H⁺ + 2e⁻ → 2[H] → H₂

These oxidation and reduction functions continuously occur on the plates for effective wastewater treatment.

System Features

Wide power supply adaptability: Operates within 220V-480VAC range
Safe and convenient: Embedded isolated voltage circuit ensures electrical safety with comprehensive protection against phase loss, overload, overcurrent, overvoltage, and zero voltage conditions
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as excellent coagulants without requiring polymer additives
