5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

Image Grand : 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

Détails sur le produit:

Lieu d'origine:	Shanghai, Chine
Nom de marque:	ECOPRO

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	$36,897

Contact

Description de produit détaillée

Productivité:	5m3/h	Poids:	1 900 kg
Type de traitement:	Filtration	Pouvoir:	1 kW
Tension:	220 V, 380 V, 110 V	Capacité:	5m3/h
Poids de l'électrode:	1 900 kg	Poids vide:	1 900 kg
Opération Poids:	7800 kg	Composants de base:	Moteur
Plage d'alimentation:	220V-480VAC	Matériau d'anode:	Aluminium, fer
Fonction d'oxydation:	Oxygène naissant [O]	Fonction de réduction:	hydrogène naissant [H]
Contrôle automatique:	Oui
Mettre en évidence:	5m3/h electrocoagulation wastewater treatment system , electrocoagulation system 220V-380V , industrial wastewater electrocoagulation system

Electrical Coagulation System Electrocoagulation Air Flotation Wastewater Treatment Equipment

Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment
Electrocoagulation system is a wastewater treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron and other readily available and inexpensive metals.

Electrocoagulation System Fabricate Process

Electrocoagulation System Work Process

Electrocoagulation System Principle

Electrochemical reaction: Fe->Fe2++2e
Anodizing reaction: 2OH-->2[O]+2e->02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.
Cathode reduction: 2H++2e->2[H]->H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.
The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide adaptability of power supply: 220V-480VAC range is available
Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; various abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.)
Automatic control: can automatically detect the ion state in the water to adjust the current and voltage
Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need for polymer is a major feature of this equipment

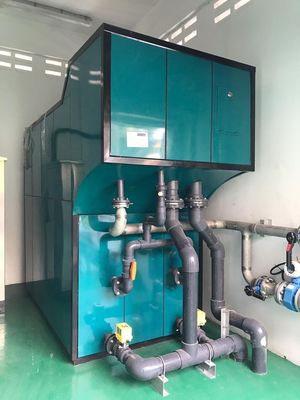

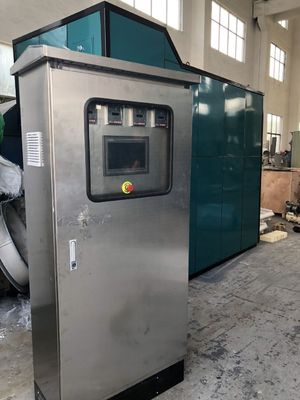

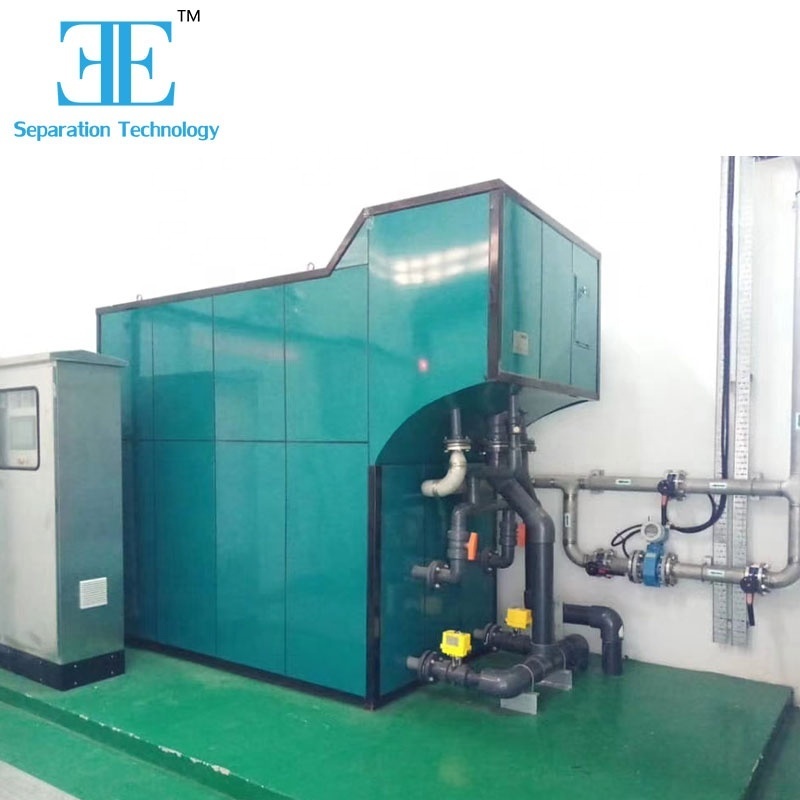

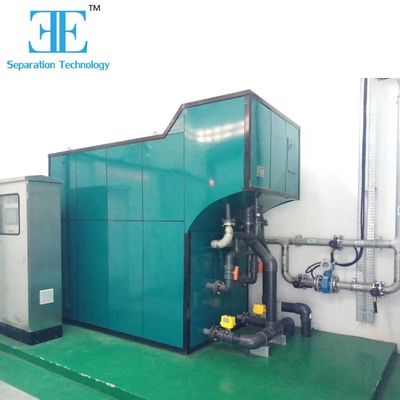

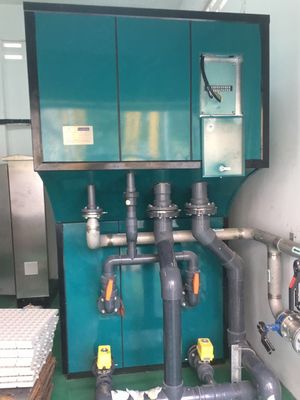

Electrical Flocculation System Work Site for Reference
